Air hydraulic twin ram jacking beam, with an automatic mechanical safety lock
2 individually controlled rams offer safe and balanced lifting
Transversely sliding rams
Can be made to fit all lifts due to its adjustable frame
Frame height is adjusted and set to the customers individual specifications
Supplied with 2 x 3.94 in extensions
- Rapid and preciseRapid and precise air hydraulic unit with high speed ram travel
- Modern designSimple modern design with control panel at ergonomical working height
- SafetyDead man’s release and safety overload valve for optimal safety
MADE IN DENMARK, ALWAYS.
All production of AC Hydraulic products take place in Viborg Denmark. It has done so since the founding, and it will continue to do so, following the values and goals of the Christensen family.
Manuals and Guides

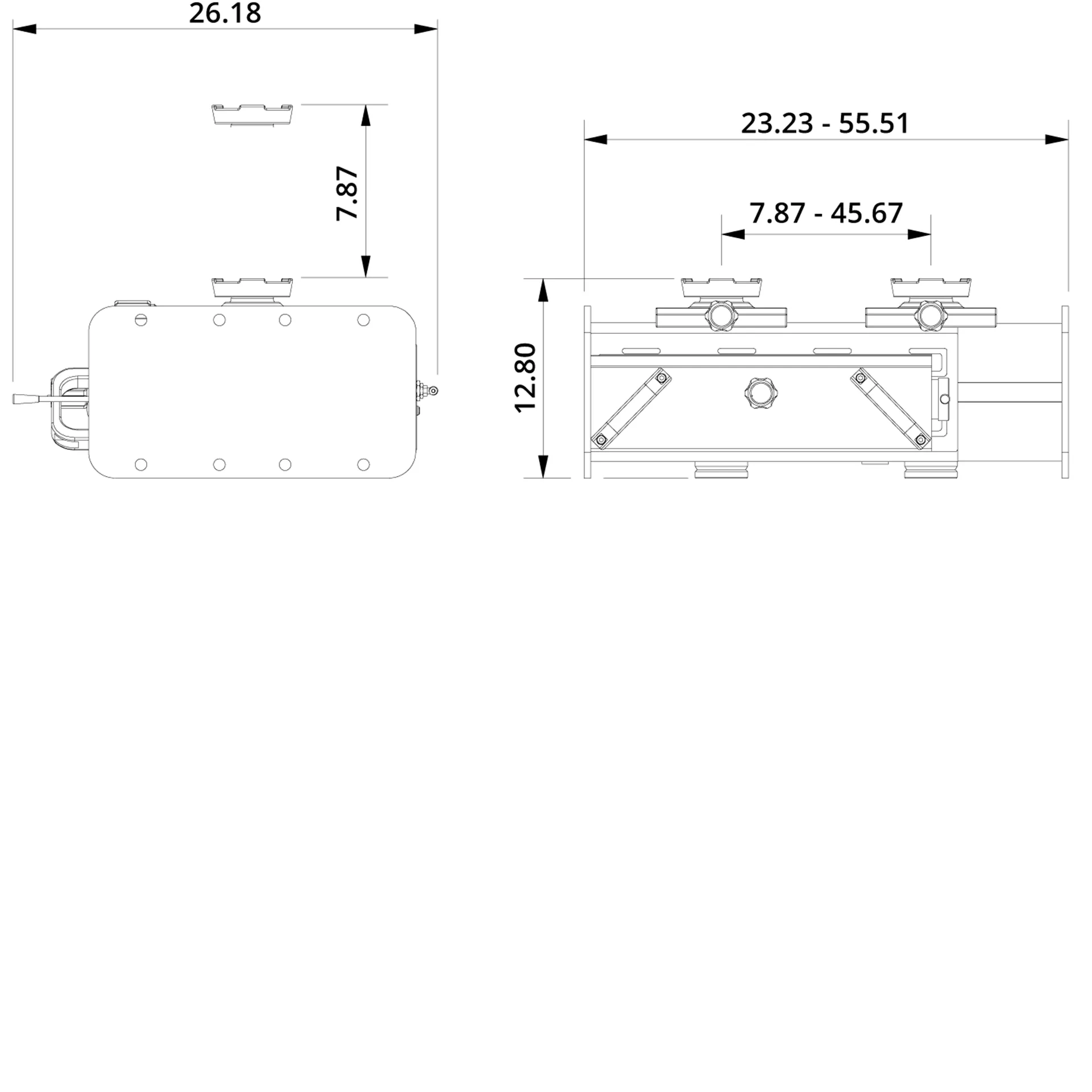

Fits any lift
Our jacking beams are available in a variety of framewidths to fit any lift you may have. Our wide selection of standard or custom mounting brackets ensure that the jacking beam and your lift work seamlessly together.
590 - 890 mm width
Distance between lifting points: 200-640 mm
850 - 1150 mm width
Distance between lifting points: 200-990 mm
1110 - 1410 mm width
Distance between lifting points: 200-1160 mm
