Heavy Duty Jacking Beam FL 2
FL-2

Air hydraulic twin ram jacking beam

2 individually controlled rams offer safe and balanced lifting
Transversely sliding rams
Can be made to fit all lifts due to its adjustable frame
Frame height is adjusted and set to the customers individual specifications
Supplied with 2 x 100 mm extensions
Spec sheet
Heavy Duty Jacking Beam FL 2 Banner
  • Rapid and precise
    Rapid and precise air hydraulic unit with high speed ram travel
  • Safety
    Dead man’s release and safety overload valve for optimum safety
  • Modern design
    Simple modern design with control panel at ergonomical working height
Get in touch
Heavy Duty Jacking Beam FL 2 Workshop

MADE IN DENMARK, ALWAYS.

All production of AC Hydraulic products take place in Viborg Denmark. It has done so since the founding, and it will continue to do so, following the values and goals of the Christensen family.

Specifications
Media
Manuals and Guides

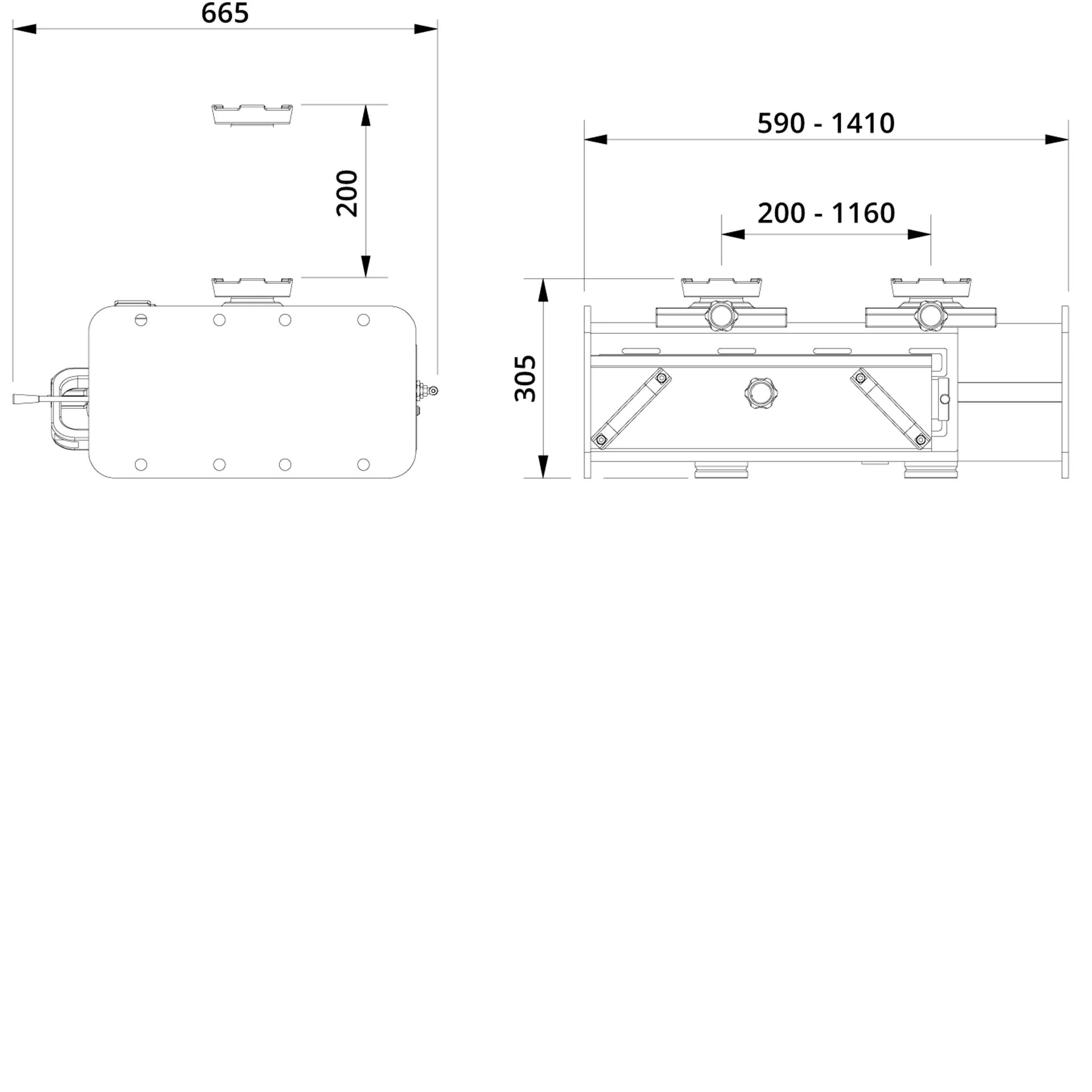

Fits any lift
Our jacking beams are available in a variety of framewidths to fit any lift you may have. Our wide selection of standard or custom mounting brackets ensure that the jacking beam and your lift work seamlessly together.
590 - 890 mm width
Distance between lifting points: 200-640 mm
850 - 1150 mm width
Distance between lifting points: 200-990 mm
1110 - 1410 mm width
Distance between lifting points: 200-1160 mm
Accessories
Cross beam adaptor - T4-2
Accessory Cross Beam Adapter T4 2
Cross beam adaptor - T5-2
Accessory Cross Beam Adapter T5 2
Cross beam adaptor - T6-2
Accesory Cross Beam Adapter T6 2
Diff beam - LB
Accessory Diff Beam LB
Trolley - FLTR
Accessory Trolley FLTR
V-saddle - FW2-90
Accessory V Saddle FW2 90
V-saddle - FW2-130
Accessory V Saddle FW2 130
U-saddle - US-100
Accessory U Saddle US 100
U-saddle - US-130
Accessory U Saddle US 130
Extension - FG100
Accessory Extension FG100
Extension - FG200
Accessory Extension FG200
Wall bracket - VB1
Accessory Wall Bracket VB1
Wall bracket - VB2
Accessory Wall Bracket VB2
Front air connection kit - HSD-F
HSD F
