Jacking Beam SD32PHL
SD32PHL

Air hydraulic jacking beam for passenger cars and vans

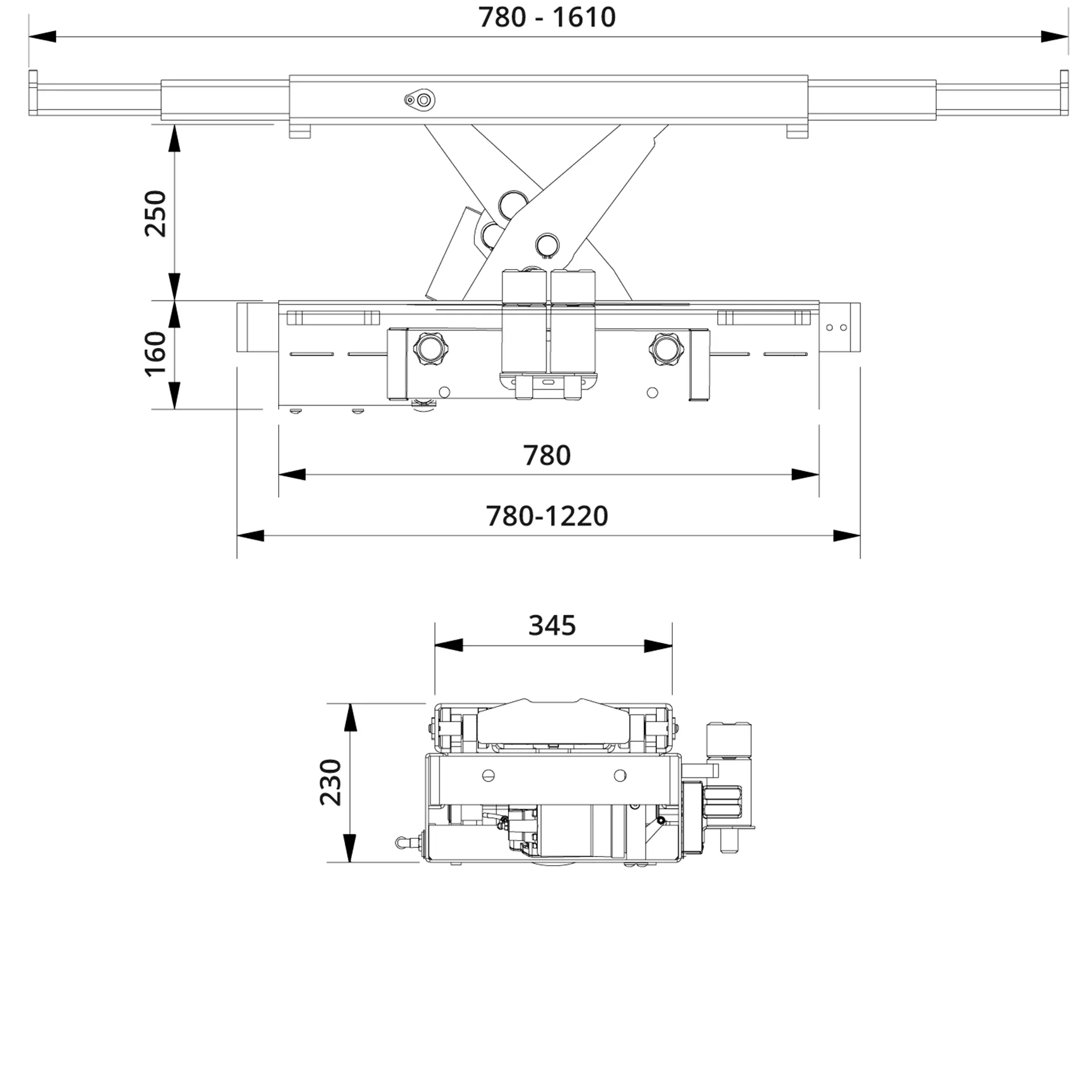

Low minimum height of 230 mm
Flexible top support beam can be extended up to 1610 mm
Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety
Jacking Beam SD32PHL Banner
  • Fits all lifts and pits
    Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
  • Match your lift or pit
    The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct version.
  • Standard accessories

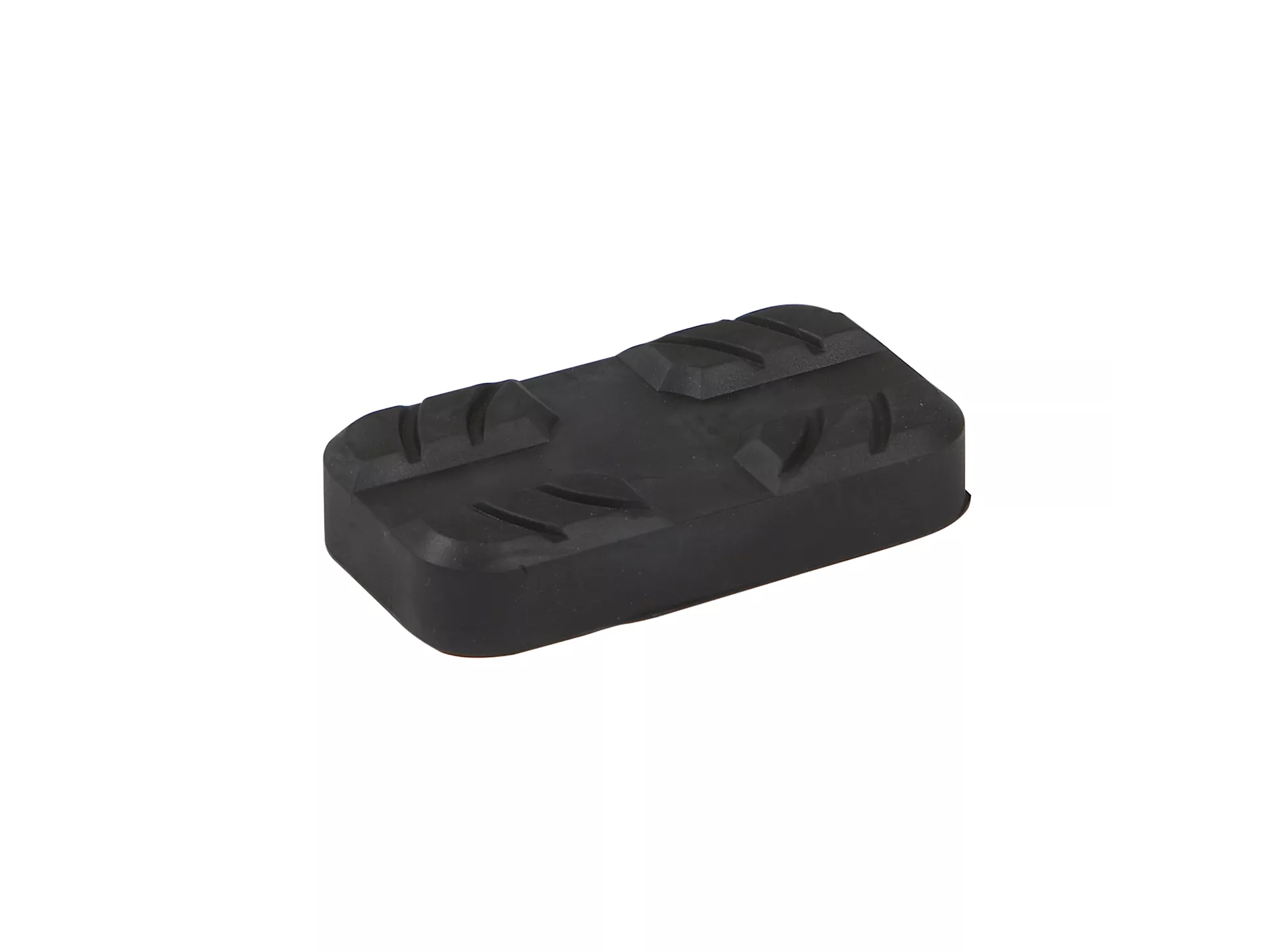

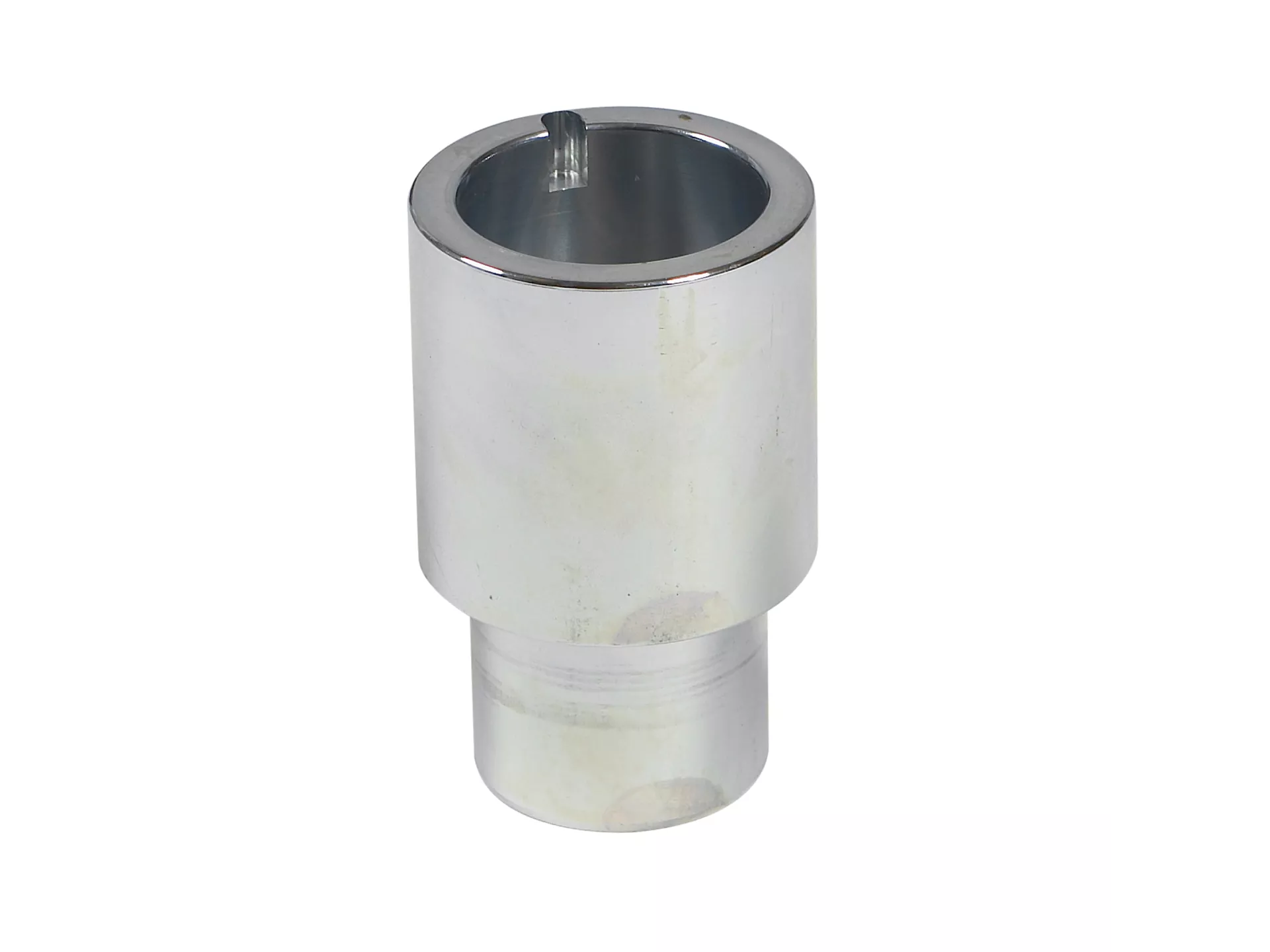

    Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body
Jacking Beam SD32PHL Workshop

MADE IN DENMARK, ALWAYS.

All production of AC Hydraulic products take place in Viborg Denmark. It has done so since the founding, and it will continue to do so, following the values and goals of the Christensen family.

CUSTOMER EXPERIENCE IS KEY IN EVERY ASPECT OF OUR BUSINESS.

  • WARRANTY
    Just as our products offer high performance and quality, so does our warranty. Starting January 1st 2017 all our products are covered by a 10 year warranty on frame, chassis, and steel structures as well as a 3 year warranty on the hydraulic system (pump and cylinder). We offer 1 year warranty on all electrical components. This is our way of showing you can trust our quality.
    warranty logo
  • MADE IN DENMARK
    We take great pride in the fact that all products are made in Viborg, Denmark. Here, honest craftmanship is combined with a 12.000 m2 modern high-tech production plant consisting of robots, laser cutting machines and state-of-the-art CNC machinery. The result is skill, knowledge and experience married with uncompromised precision and efficiency in a product that will last a lifetime.
    Made In Denmark AC Hydraulic
  • ISO 9001
    To ensure a constantly high quality, every product is being thoroughly tested before shipment. This and many other points appear from our quality management system certified according to ISO 9001. The standard is based on seven quality management principles including a strong customer focus and continual improvement, which ensures that customers get consistent, good-quality products and services on time - every time.
    ISO 9001 Certification AC Hydraulic
