Jacking Beam SD20PHL
SD20PHL

Air hydraulic jacking beam for passenger cars and vans

Quick and efficient lifting due to reliable and noiseless pump

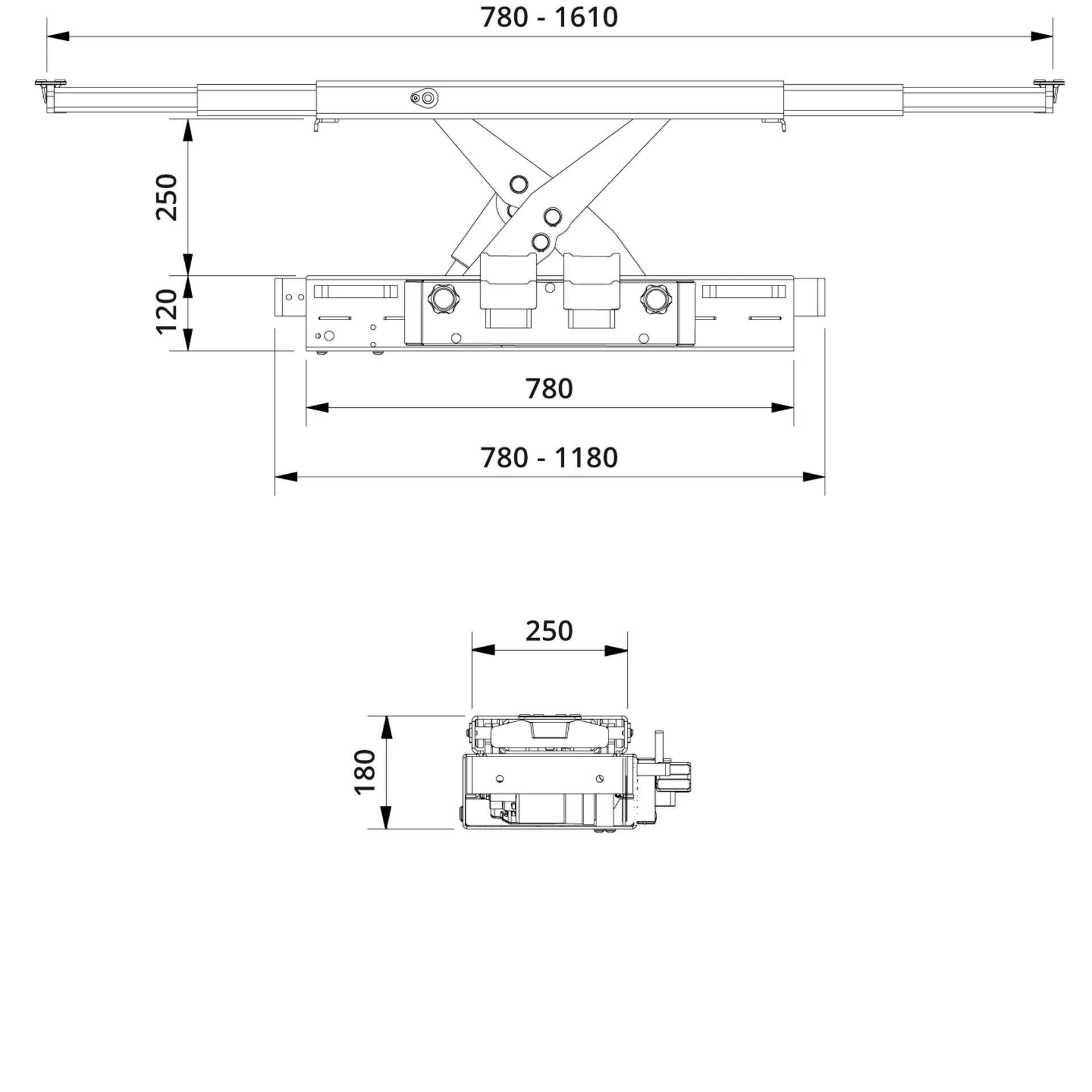

Low closed height of only 180 mm makes it suitable for vehicles with a low clearance
Flexible top support beam can be extended up to 1610 mm
Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety
Jacking Beam SD20PHL Banner
  • Fits all lifts and pits
    Unique height adjustable mounting bracket system – designed to fit all current lifts and pits
  • Match your lift or pit
    The mounting brackets are not a part of the product and must be ordered separately. Please always state lift type to get the correct support arms.
  • Standard accessories
    Supplied with 3 extension sets (10/45/90 mm) and rubber cushion for protection of car body
Jacking Beam SD20PHL Workshop
